Circular Convolution Method 1

Matlab program to find Circular Convolution using fft and ifft predefined function.

Circular Convolution: If x(n) is a sequence of N1 number of samples and h(n) with N2 samples, after convolution y(n) will have N=max(N1,N2) samples.

It cannot be used to find the response of a filter. Zero padding is necessary to find the response of a filter.

Two another methods of Circular Convolution: By matrix multiplication and By using for loop function.

Matlab code

clc;

close all; clear all;

x=input('Enter the 1st sequence x[n] = ');

h=input('Enter the 2nd sequence h[n] = ');

N1=length(x);

N2=length(h);

N=max(N1,N2); %Length of Circular convolved output sequence

if(N1>N2)

h=[h,zeros(1,N1-N2)]; %Modified second sequence if N1>N2

else

x=[x,zeros(1,N2-N1)]; %Modified first sequence if N1

end;

X=fft(x,N);

H=fft(h,N); Y=X.*H;

y=ifft(Y,N);

disp('Circular convolved output y[n]=');y %To view output in command window

%To display and plot circular convolution

subplot(3,1,1);

stem(0:N-1,x);

xlabel('N-->');

ylabel('Amplitude-->'); title('1st input sequence x[n] ');

subplot(3,1,2);

stem(0:N-1,h);

xlabel('N-->');

ylabel('Amplitude-->');

title('2nd input sequence h[n]');

subplot(3,1,3);

stem(0:N-1,y);

xlabel('N-->');

ylabel('Amplitude-->');

title('Circular convolved output y[n]');

Command window

Enter the 1st sequence x[n] = [1 2 3 4]

Enter the 2nd sequence h[n] = [3 5 2 1]

Circular convolved output y[n] =

y = 31 22 25 32

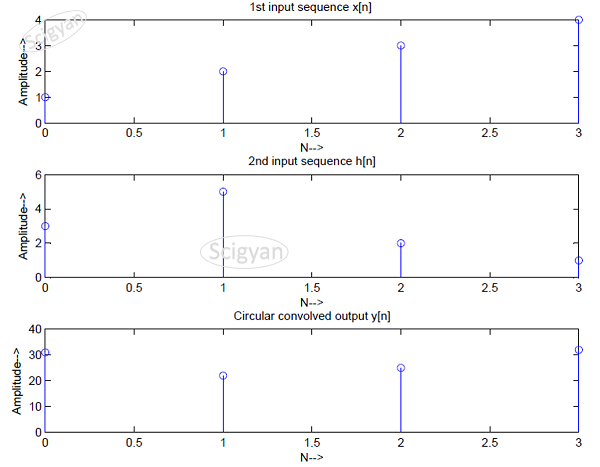

Figure window
